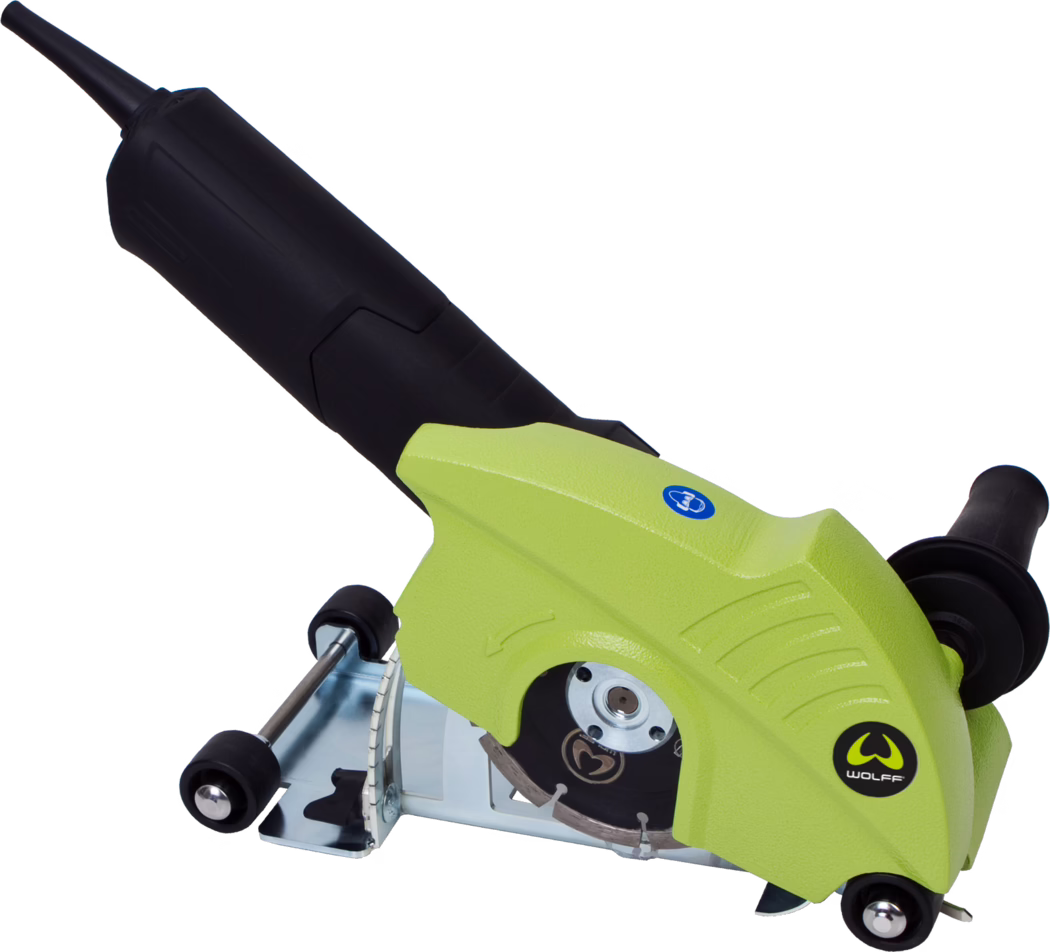

EF 135
The EF 135 screed joint cutter offers an excellent solution for fast, low-dust cutting and separating of screed and other mineral materials. From renovations in residential areas to large-scale construction projects, this tool provides important services.
Properties
Area of application: The joint cutter is primarily used to repair broken screeds using corrugated wire connectors and crack resin. To do this, the machine is used to make short cuts along a crack with a length of approx. 15 cm at intervals of approx. 30 cm. In less frequent applications, long cuts are made, for example to remove entire sections of screed. In conjunction with the guide rail available from WOLFF, it is even possible to cut tiles.
Precise cutting depth of up to 35 mm: The floor cutter enables precise depth adjustment, specially designed for processing different screed thicknesses.
Stepless depth adjustment: A finely adjustable setting allows the cutting depth to be flexibly adapted to the specific requirements of the material and the work situation, leading to optimum results - every time.
Cutting blade marking: This function facilitates precise cutting along the marked line and ensures maximum accuracy with every cut.
Ease of handling and ergonomic design: The EF 135 screed joint cutter is extremely easy to handle and makes work easier, even during long periods of use, as operator fatigue is minimized.
Low-dust working: The advanced dust reduction system ensures a clean working environment. Dust is extracted directly from the diamond cutting blade, reducing exposure to harmful dust.
Safe guidance thanks to integrated roller chassis: The machine is equipped with a stable chassis that enables continuous and safe guidance. The screed joint cutter cuts and vacuums in one step and still stands securely on the floor.
How does a floor cutter work?
A floor saw, such as the EF 135 floor saw, works with a rotating, high-speed diamond blade that cuts through the material. Equipped with a 1550 W motor, the machine delivers the necessary power to cut through hard building materials such as screed and other materials. The precise depth setting and cutting blade marking guarantee the most accurate cuts.
Additional info
- EF 135
- DIA-cutting blade 135 mm
- Vacuum cleaner connection piece
- Tool kit
- Safety goggles
- Hearing protection
Voltage |
115 V |
---|---|
RPM |
11000 RPM |
Frequency |
50 Hz |
Power |
1550 W |
Noise pressure level |
108 dB(A) |
Noise power level |
121 dB(A) |
Total weight |
4.5 kg |
Article number | Article | Shipping unit |
---|---|---|
81340 | EF 135 115V UK |
Piece :
1
|
